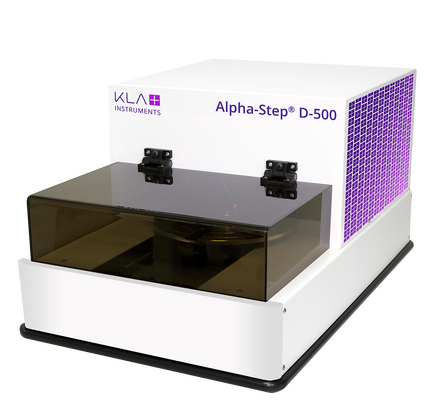

Alpha-Step® D-500 Stylus Profiler
Capable of 2D step height measurement from a few nanometers up to 1200µm, the D-500 stylus profiler also supports 2D measurements of roughness, bow, and stress for R&D and production environments. The D-500 stylus profilometer includes a manual 140mm stage and advanced optics with enhanced video controls.
Manufacturer
KLA
A global technology leader who make an impact by creating solutions that drive progress and transform industries. Collaboration is the key to their success. KLA provide leading-edge technology and devices using advanced inspection tools, metrology systems, and computational analytics. Their solutions accelerate tomorrow’s electronic devices. They enable evolution and innovation in the data era across key industries including automotive, mobile and data centre.
Key Features
- Step Height Nanometers to 1200µm
- Low Force: 0.03mg to 15mg
- Video: 5MP high-resolution colour camera
- Keystone Correction: Removes distortion due to side view optics
- Arc Correction: Removes error due to arc motion of the stylus
- Compact Size: Smallest system footprint for a benchtop stylus profiler
- User friendly software interface
Accurate & Repeatable Surface Measurement
The Alpha-Step® D-500 Stylus Profiler offers impressive accuracy and repeatability in surface measurement, in a compact footprint and at an attractive price. Capable of performing 2D measurement of step height, roughness, bow, and stress, the Alpha-Step® D-500 has comprehensive capabilities for fundamental surface measurements. KLA’s cutting-edge optical lever sensor technology allows for a high vertical range, and low force operation with enhanced stylus force control. Optical lever sensor technology also improves repeatability when compared to conventional force coil systems. Powerful software algorithms build upon the Alpha-Step’s hardware platform, and provide arc correction as standard, eliminating sidewall effect.
A large range of materials can be effectively measured with stylus profilometry, regardless of material properties such as transparency. The low force measurement made possible by KLA’s technology allows delicate surfaces to be measured accurately and easily.
Enhanced High-Resolution Optics
The Alpha-Step® D-500 makes operating a stylus profiler easier by including a high-resolution colour camera system. The camera features 4X digital zoom and flexible lighting controls. KLA’s software uses keystone correction algorithms to further enhance the D-500’s vision system. Keystone correction automatically corrects perspective distortions usually caused by side view options, providing an orthogonal view of a samples surface.
Shown left: Video from side view optics
Shown right: Video with keystone correction
2D Surface Measurement
A comprehensive range of 2D surface measurements are supported by the Alpha-Step® D-500. Featuring a 30mm scan length, measurement types include step height from nanometres to 1200μm, texture including roughness and waviness, and form including bow and shape. Scan stitching is possible up to 80mm in length. 2D stress measurement is also available as an additional option.
The Alpha-Step D-500 is ideally suited for semiconductor and compound semiconductor applications, such as thin film deposition and etching processes. Low force measurement is supported, enabling the measurement of soft or delicate materials, such as photoresists.
Industries
- Universities, research labs and institutes
- Semiconductor and compound semiconductor
- LED: Light emitting diodes
- Solar
- MEMS: Micro-electro-mechanical systems
- Automotive
- Medical devices
And more: Contact us with your requirements
Applications
Step Height Measurement: 2D step height
The Alpha-Step D-500 stylus profiler is capable of measuring 2D step heights from nanometres to 1200µm. This step height measurement enables quantification of material deposited or removed during etch, sputter, SIMS, deposition, spin coatings, CMP and other processes. The Alpha-Step series has low force capability that enables measurement of soft materials, such as photoresist.
Texture: 2D roughness and waviness
The Alpha-Step D-500 measures 2D texture, quantifying the sample’s roughness and waviness. Software filters separate the measurement into the roughness and waviness components and calculate parameters such as root mean square (RMS) roughness.
Form: 2D bow and shape
The Alpha-Step D-500 can measure the 2D shape or bow of a surface. This includes the measurement of wafer bow that can result from mismatch between layers during the device fabrication, such as the deposition of multiple layers for the production of semiconductor or compound semiconductor devices. The D-500 can also quantify the height and radius of curvature of structures, such as a lens.

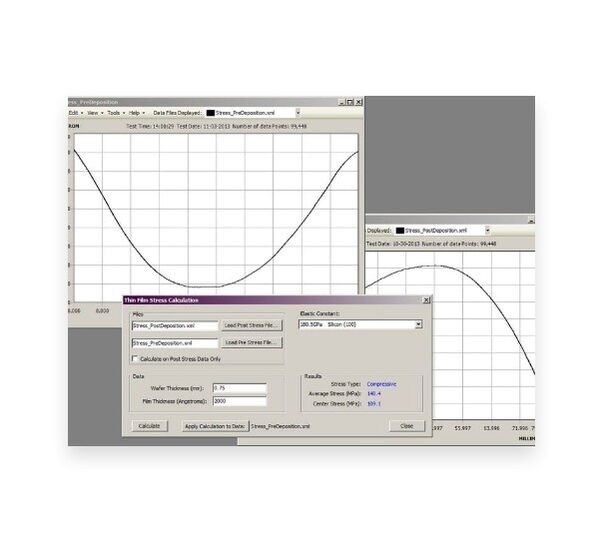

Stress: 2D thin film stress
The Alpha-Step D-500 is capable of measuring stress induced during the manufacture of devices with multiple process layers, such as semiconductor or compound semiconductor devices. The bow of the sample is accurately measured using a stress chuck to support the sample in a neutral position. The change in shape from a process such as film deposition is then used to calculate the stress by applying Stoney’s equation.
Industry
Universities and Research Labs
The Alpha-Step stylus profiler is a great addition to any university, government research, or general-purpose laboratory. The system provides direct, material-independent measurement to enable researchers to confidently measure the deposition thickness of any material, transparent or opaque. The Alpha-Step is very easy to use, allowing any user to quickly generate measurement data with minimal training.
SIMS Craters
Measure SIMS (Secondary Ion Mass Spectrometry) crater depth with high precision to determine ion concentration as a function of crater depth. Measure the roughness of the bottom surface of the crater to provide information on beam scan uniformity.
Pilot Production
The Alpha-Step stylus profiler is ideal for low volume, pilot production lines. The operator can quickly focus and measure at multiple locations on the sample to map any process variation across the sample surface. Alpha-Step software also supports tracking of the user, system and lot information to support production statistical process control. Typical applications include etch and deposition step height, and surface texture measurements.
General Purpose
Use the Alpha-Step stylus profiler in a wide range of industries for production or R&D. Examples include measurement of textile security features and roughness correlating to absorbency of the textile. Consumer electronics applications include measurement of touch screen topography and measurement of thin film step heights on glass screens.
Semiconductor and Compound Semiconductor
Measure surface topography for front end through back end and packaging processes. These applications include the measurement of the photoresist thickness, etch depth, sputter height, post-CMP topography, roughness, and sample bow and stress for improved production process control.
Downloads
Alpha-Step® D-500 Stylus Profiler Brochure 2023
Alpha-Step® D-500 Stylus Profiler Specification Sheet
Benchtop Stylus Profilers Brochure
Precision Depth Measurement of Shallow SIMS Craters using a KLA Instruments™ Stylus Profilometer
General Information about Stylus-based Surface Profilers from KLA Instruments™
Multi-Step Analysis Function: Powerful Analytics from KLA Instruments™ Surface Profilers.
Topography Sensor Technology for Stylus Profilers
Stylus Product Line
Apex Software
Options
Stylus Options
The Alpha-Step D-500 has a variety of styli available to support the measurement of step heights, high aspect ratio steps, roughness, sample bow, and stress. The tip radius ranges from 100nm to 50µm and determines the lateral resolution of the measurement. The included angle ranges from 20 to 100 degrees, specifies the maximum aspect ratio of the measured feature. All styli are manufactured from diamond to reduce wear and increase stylus lifetime.

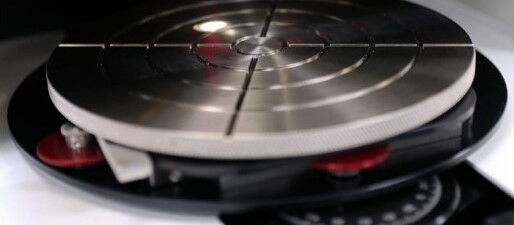

Sample Chucks
The Alpha-Step D-500 has a range of chucks available to support application requirements. The standard chuck is nickel plated aluminium chuck for samples up to 140mm. A flat black chuck is available for transparent samples to minimize reflection from the chuck surface. A universal vacuum chuck is also offered and includes precision locating pins for samples from 50mm to 125mm. Both the standard and universal chucks support stress measurements with 3-point locators to hold the sample in a neutral position for accurate bow measurements.
Isolation Tables
The Alpha-Step D-500 has both tabletop and free-standing isolation table options. The Granite Isolator™ Series offers tabletop isolation systems that combine granite with high grade silicon gel to provide passive isolation. The Onyz Series tabletop isolation systems use pneumatic air isolators to provide passive isolation. The TMC 63-500 Series isolation table is a free-standing steel frame table that uses pneumatic air isolators to provide passive isolation.
Step Height Standards
The Alpha-Step D-500 uses thin and thick film NIST traceable step height standards offered by VLSI Standards. The standards feature an oxide step on a silicon die mounted on a quartz block. A step height range of 8nm to 250µm is available.
Apex Analysis Software
Apex analysis software enhances the standard data analysis capability of the D-500 with an extended suite of leveling, filtering, step height, roughness, and surface topography analysis techniques. Apex supports ISO roughness calculation methods, plus local standards such as ASME. Apex can also serve as a report writing platform with the capability to add text, annotations, and pass/fail criteria. Apex is offered in eight languages.
Offline Analysis Software
The Alpha-Step D-500 offline software has the same data analysis capability that exists on the tool. This enables the user to analyse data without using valuable tool time.
