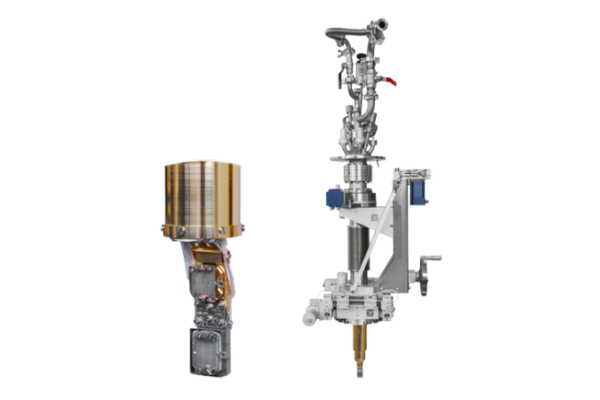

4-6 Axes LHe Manipulators Open Cycle

Spectroscopy UHV manipulators with heating and LHe cooling (open cycle) possibility. It is a highly precise and highly rigid UHV specimen manipulator with modular construction, suitable for a range of X, Y, Z linear motions and R1, R2, R3 rotations. Modular construction means that the specification can be upgraded or modified by the addition or replacement of well-defined modules.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Heating/cooling

Sample temperature depend on sample holder type:

  • Direct heating with 10 A,
  • Resistive heating up to 1100 °C,
  • EB heating up to 1400 °,
  • Liquid helium cooling:
    – 4 axes manipulator – down to 4 K*
    – 5 axes manipulator – down to 4.8 K* / 10 K**
    – 6 axes manipulator – down to 7 K* / 15 K**

* Parameters achieved without heating option and temperature stabilisation.
** Parameters achieved with heating option.

Technical data

Standard base flange DN 100CF or DN 160CF
Pressure range down to 10-11 mbar
Heating methods resistive, EB, direct
Cooling method LHe
XY range up to 600 mm
positional control handwheel/motorised*
resolution (manual/motorised) 1 mm / standard 10 μm (1 μm on request)
R1 range ± 180° or ± 360°
positional control rotary feedthrough/motorised*
resolution (motorised) 0.1°
R2 range 360° continuous
positional control motorised*
resolution (motorised) 0.1°
R3 range – 20° to +40°
positional control rotary feedthrough/motorised*
resolution (motorised) 0.1°
Bakeout temperature up to 150 °C
* stepper motor or servomotor – depending on the application.
The manipulator can be prepared for customer motors or drivers – on request.

Downloads

Brochures

Manipulators and Transferring Systems Brochure

View Brochure

Options

  • Full motorisation
  • Full software control
  • Helium recovery system
  • Possibility to mount an angular device for PES calibration
  • Temperature stabilisation
  • Heating option: direct, resistive or EB
