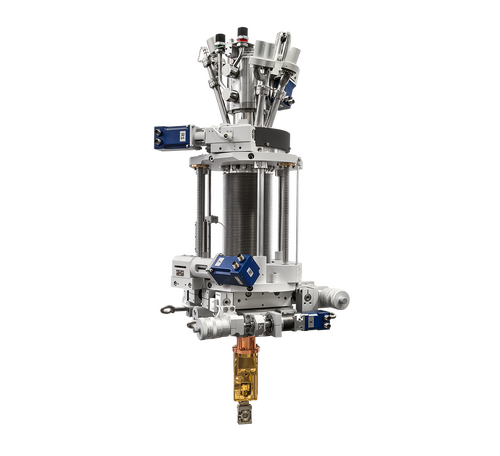

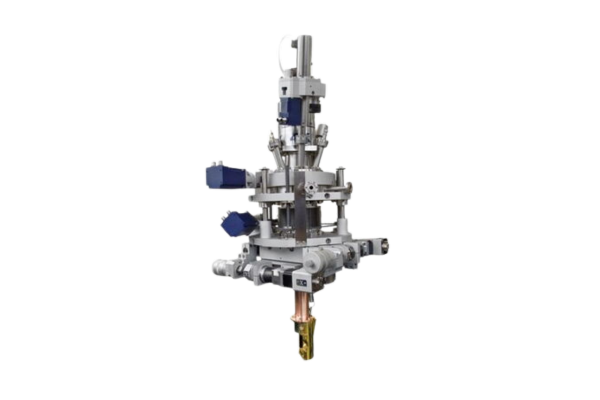

4-6 Axes LHe Manipulators Closed Cycle

The manipulator with helium cryostat is a versatile, closed-cycle system that applies in many UHV surface science researches. It can be configured with Z slide, XY stage, or differentially pumped rotary feedthrough. Modular construction means that the specification can be upgraded or modified by the addition or replacement of well-defined modules. The system typically includes a compressor, high-pressure hoses, an expander, a temperature controller, a heater and a sensor.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Heating/cooling

Sample temperature depends on sample holder type:

  • EB heating – up to 1000 °C (second stage),
  • Direct heating with 10 A,
  • Resistive heating (on request),
  • Liquid helium cooling:
    below 10 K* (5-axes manipulator)

* Parameters achieved without stabilisation and without heating option.

Technical data

Standard base flange DN 100CF or DN 160CF
Pressure range down to 10-11 mbar
Heating methods resistive, EB, direct
Cooling method LHe
XY range ± 12.5 mm*
positional control micrometer/motorised**
resolution (manual/motorised) 5 μm / 1 μm
Z range up to 300 mm
positional control handwheel/motorised**
resolution (manual/motorised) 50 μm / standard 10 μm (1 μm on request)
R1 range ± 180°
positional control rotary feedthrough/motorised*
resolution (motorised) 0.1°
R2 range 360° continuous
positional control motorised**
resolution (motorised) 0.1°
R3 range – 20° to +40°
positional control rotary feedthrough/motorised**
resolution (motorised) 0.1°
Bakeout temperature up to 150 °C
* for base flange DN 160CF
** stepper motor or servomotor – depends on the application.
The manipulator can be prepared for customer motors or drivers – on request.

Downloads

Brochures

Manipulators and Transferring Systems Brochure

View Brochure

Options

  • Full motorisation
  • Full software control
  • Helium recovery system
  • Possibility to mount an angular device for PES calibration
  • Additional electrical contacts for silicon sample direct heating
  • Low vibration cryostat
  • Temperature stabilisation
  • Heating option: direct, resistive or EB
