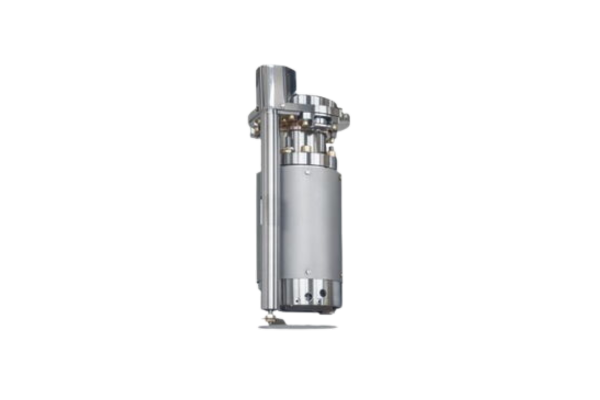

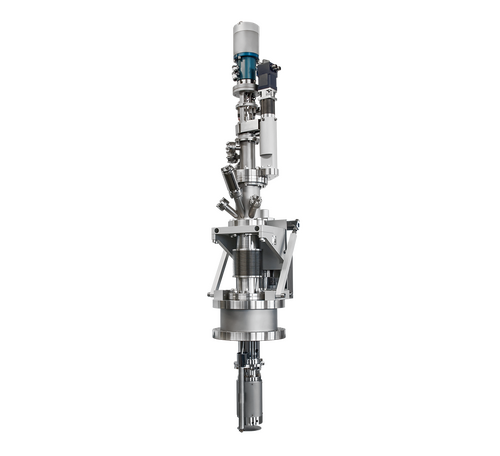

1-4 Axes Sputtering Manipulators
The 1-4 axes motorised sputtering manipulator is designed for sputter deposition applications under HV and UHV conditions, and for reactive sputtering. Heating is performed by resistive method. The manipulator can work in the vertical orientation.
It is a high rigidity, UHV specimen manipulator of modular construction, with motorised continuous substrate R1 rotation and Z translation (additionally can be equipped with XY movement module).
Manufacturer
Prevac
Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.
Description
Prepared to heat the substrate up to 1000°C with accuracy +/- 1°C. The station includes the substrate (standard up to 6 inch sample holder) positioner and allows precise angular position of substrate in relation to linear shutter.
The heater material is optimally adapted depending on the customer’s requirements and the specific conditions of the deposition process (e.g. heating temperature, presence of reactive gases). Exemplary heaters: thermocoax, graphite coated with SiC, SiC solid (β).
▪ Sample holders: Plate style, PTS
▪ Base pressure: 10-10 mbar (working pressure: ~10-2 mbar)
Technical data
| Standard base flange | DN 100CF, DN 160CF, DN 200CF or DN 250CF |
| Base pressure range | 10-10 mbar |
| Shutter | integrated or external, pneumatic or manual |
| Heating methods | Heating methods resistive, direct |
| Substrate temperature | up to 1000 °C |
| Cooling method | H20 |
| Z range | 50 mm (other on request) |
| positional control | handwheel/motorised* |
| resolution (manual/motorised) | 500 μm / standard 10 μm (1 μm on request) |
| R1 range | 360° continuous |
| positional control | micrometer/motorised* |
| resolution (motorised) | 5 μm / 1 μm |
| XY range(option) | ± 12.5 mm |
| positional control | micrometer/motorised* |
| resolution (manual/motorised) | 5 μm / 1 μm |
| Max speed | up to 60 rpm (other on request) |
| Bakeout temperature | up to 150 °C |
| * stepper motor or servomotor – depend on application. Manipulator can be prepared for customer motors or drivers – on request. |
Downloads
Manipulators and Transferring Systems Brochure
Options
- H2O cooling shield
- side or integrated wedge shutter
- XY movement stage
- BIAS, DC, RF
