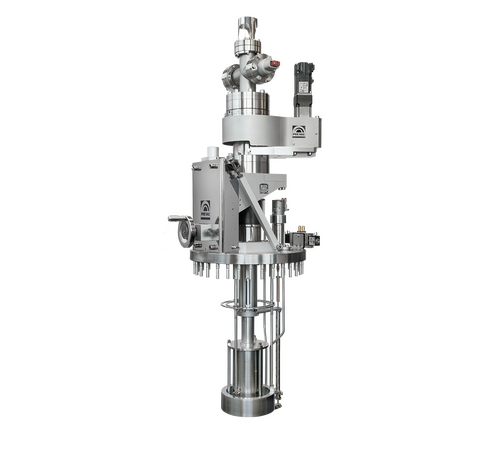

1-4 Axes MBE Manipulators

The 1-4 axes motorised MBE manipulator is designed for MBE applications under ultra-high vacuum conditions. Heating is performed by resistive or EB methods. The manipulator can work in the vertical orientation.

It is a high precision, high rigidity, UHV specimen manipulator of modular construction, suitable for a range of R1 motorised continuous substrate rotation and Z translation.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Description

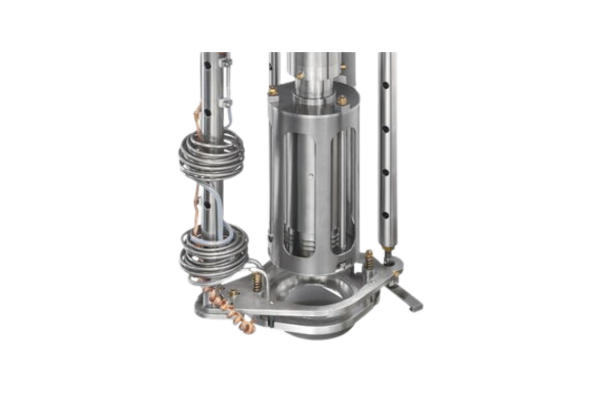

Prepared to heat the substrate up to 1400°C (EB heating, UHV conditions) with accuracy +/- 1°C. The station includes the substrate (standard up to 6-inch sample holder) positioner and allows precise angular position of the substrate in relation to linear shutter.

  • Sample holders: generally Plate style
  • Prepared for reaching the high temperature
  • Base pressure: 10-11 mbar

Technical data

Standard base flange DN 100CF to DN 300CF (depending on the sample size, other on request)
Base pressure range 10-11 mbar
Shutter integrated or external, pneumatic or manual
Heating methods resistive, EB
Substrate temperature up to 1200 °C (resistive)
up to 1400 °C (EB)
Cooling method LN2 H20
Z range 50 mm (other on request)
positional control handwheel/motorised*
resolution (manual/motorised) 500 μm / standard 10 μm (1 μm on request)
R1 range 360° continuous
positional control micrometer/motorised*
resolution (motorised) 5 μm / 1 μm
XY range(option) ± 12.5 mm
positional control micrometer/motorised*
resolution (manual/motorised) 5 μm / 1 μm
Max speed up to 60 rpm (other on request)
Bakeout temperature up to 150 °C / 200 °C (on request)
* stepper motor or servomotor – depend on application.
Manipulator can be prepared for customer motors or drivers – on request.

Heater Materials

Graphite flexible (stable in form), minimal outgassing at the high temperatures, oxidation resistant below 500°C
Graphite + PBN coating flexible (stable in form), minimal outgassing at the high temperatures, oxidation resistant below 800°C (depends on partial pressure of oxygen)
Graphite + SiC coating hard, light and stable in form, oxidation resistant below 1400°C
SiC solid (β) extremely hard, light and stable in form, low thermal expansion, durable to mechanical and electrical shocking, excellent resistance to reactive gases/oxidation

Options

  • H2O shroud
  • LN2 or H2O cooling
  • Side or integrated wedge shutter (possible with H2O cooling option)
  • XY movement stage
  • Shutter on/off
