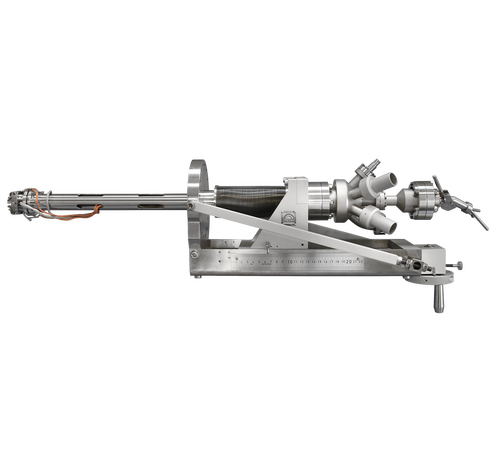

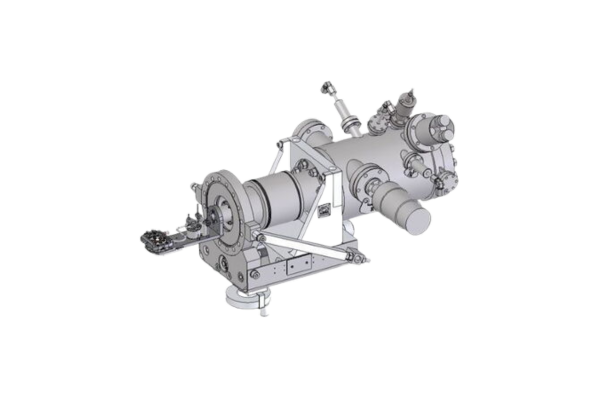

1-3 Axes Manipulators

According to the precise individual needs of the client, we can design and provide a wide range of customised UHV manipulators. The manipulators can move sample in any of three orthogonal axes XYZ. Additional rotational movements around axes R1, R2 or R3 can be achieved using add-on rotary devices. To achieve the highest positioning accuracy, resolution and repeatability, the XYZ manipulator and rotary drive movements can be motorised. Manipulators can work in any orientation.

Manufacturer

Prevac

Prevac are a world leader in the design and production of analytical and deposit scientific and research equipment. Their systems operate in a high and ultra high vacuum environment. They design and construct UHV and HV systems fully adapted to the individual requirements of research projects and industrial applications.

Heating/cooling

Each manipulator has a sample receiving stage for PTS or Flag style sample holder. Samples can be heated resistively, with direct current or by EB method, depending upon the requirement. Cooling can be performed by cryostat through which flows liquid nitrogen LN2 or liquid helium LHe.

Service Support

Comprehensive repairs and servicing

Annual Support Programs

Your metrology instrumentation is a major investment that is critical to your business operation and success. In today’s competitive climate, it is more important than ever to extend the functionality and peak performance of your metrology equipment years beyond the expiration of your factory warranty. CN Tech’s Support Programs will help ensure that your investment is protected, and that you and your instrument’s are always operating at peak performance.

With over 20 years’ experience servicing and repairing you can be assured that your system is in safe hands. The independent services we offer include system relocation, maintenance visits, parts and consumables, and break down interventions.

CN Tech’s Support Programs are an economical way to guarantee optimal working condition:

  • Annual Preventive Maintenance
  • Priority Technical Assistance
  • Preferred Parts Availability
  • On-Site User Training
  • Remote Diagnostics
  • No surprise repair expense and much more!

Support Contact Example

An example of our service and support contracts are shown below:
